How Does a Tube Filling Machine Work?
In the cosmetic, pharmaceutical, food, and daily chemical industries, tube packaging has become one of the most popular packaging solutions. Products such as toothpaste, facial cleanser, ointment, hand cream, and gel are commonly packed in plastic or aluminum tubes. To achieve efficient and hygienic production, manufacturers rely on automatic tube filling and sealing machines.
This article explains how a tube filling machine works, its main components, working process, applications, and advantages.
What Is a Tube Filling Machine?
A tube filling machine is an automatic packaging machine designed to fill liquid, cream, paste, or semi-liquid products into tubes and then seal the tube ends securely.
These machines are widely used for:
- Toothpaste
- Cosmetic cream
- Ointment
- Gel products
- Facial cleanser
- Pharmaceutical paste
- Food sauces
Depending on production requirements, tube filling machines can be:
- Semi automatic
- Fully automatic
- Rotary type
- Linear type
Main Components of a Tube Filling Machine
A standard automatic tube filling sealing machine usually includes the following parts:
Tube Loading System
This system automatically places empty tubes into tube holders for continuous production.
Filling System
The filling nozzle accurately injects the product into the tube. Servo or piston filling systems are commonly used for high precision.
Sealing System
After filling, the tube tail is sealed by heat sealing or ultrasonic sealing technology.
Coding System
The machine can print production dates, batch numbers, or expiration dates on the tube tail.
Discharge System
Finished products are automatically discharged for packing or cartoning.
How Does a Tube Filling Machine Work?
The working process of a tube filling machine can generally be divided into several steps.

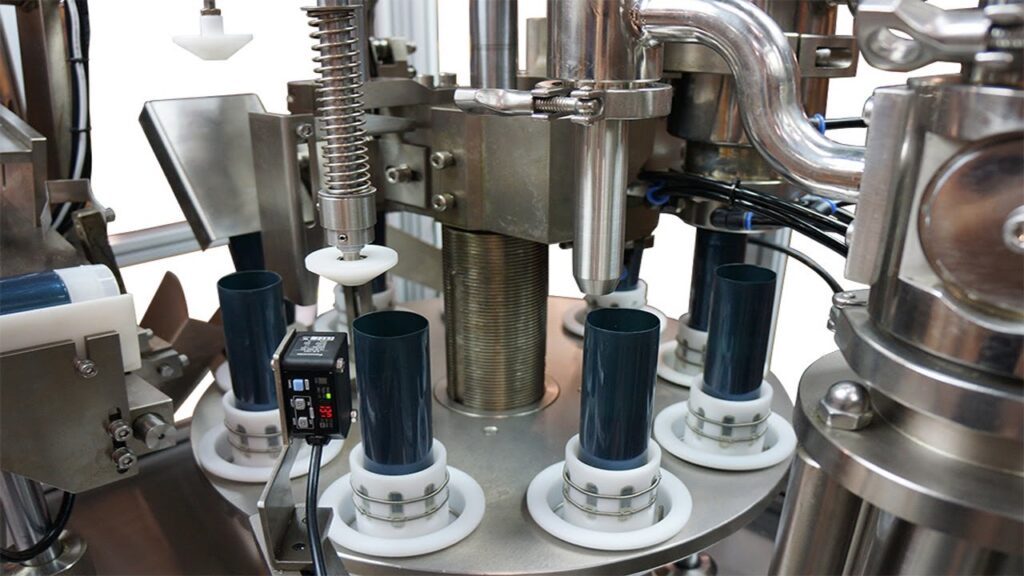

1. Tube Loading
Empty tubes are manually or automatically loaded into the machine hopper. The machine then transfers each tube into the rotating mold holder.
This process ensures continuous and stable production.
2. Tube Orientation
For printed tubes, the machine uses a photoelectric sensor to identify registration marks and position the tube correctly.
This ensures that logos and graphics remain aligned after sealing.
3. Product Filling
The filling nozzle enters the tube and injects the product accurately according to the preset filling volume.
Common filling materials include:
- Cream
- Lotion
- Gel
- Toothpaste
- Ointment
- Food paste
Advanced servo filling systems help improve filling accuracy and reduce material waste.
4. Tube Heating and Sealing
After filling, the tube tail moves into the sealing station.
For plastic tubes:
- Hot air or ultrasonic sealing is commonly used.
For aluminum tubes:
- Mechanical folding and crimp sealing are applied.
The sealing process ensures leak-proof packaging and professional appearance.
5. Date Coding
The machine can emboss or print:
- Manufacturing date
- Expiry date
- Batch number
This is especially important in pharmaceutical and cosmetic industries.
6. Finished Product Discharge
After sealing and coding, the finished tubes are automatically discharged onto a conveyor for further packaging.
Some factories connect the tube filling machine directly with:
- Cartoning machines
- Labeling machines
- Case packers
to build a fully automatic packaging line.
https://youtu.be/ReAHnP-JxlgApplications of Tube Filling Machines
Tube filling sealing machines are widely used in many industries.
Cosmetic Industry
Used for:
- Facial cleanser
- Hand cream
- Sunscreen
- Lotion
- Hair gel
Pharmaceutical Industry
Used for:
- Medical ointment
- Antibiotic cream
- Gel medicine
Food Industry
Used for:
- Condensed milk
- Chocolate sauce
- Honey paste
Daily Chemical Industry
Used for:
- Shoe polish
- Industrial adhesive
Advantages of Automatic Tube Filling Machines
High Production Efficiency
Automatic machines can significantly improve production speed and reduce labor costs.
Accurate Filling
Servo control systems provide stable and precise filling volumes.
Hygienic Production
Stainless steel structure and enclosed filling systems meet GMP standards.
Strong Sealing Quality
Professional sealing systems help prevent leakage and extend product shelf life.
Easy Operation
Modern PLC touch screen systems make operation simple and user-friendly.
How to Choose the Right Tube Filling Machine
Before purchasing a tube filling sealing machine, manufacturers should consider:
- Tube material (plastic or aluminum)
- Product viscosity
- Production capacity
- Filling accuracy requirements
- Automation level
- Budget
Choosing the right machine can improve packaging quality and production efficiency.
Why Choose Shanghai Shenhu?
As a professional packaging machine manufacturer in China, Shanghai Shenhu Co., Ltd. provides reliable tube filling sealing machines for cosmetic, pharmaceutical, food, and daily chemical industries.
Our advantages include:
- Customized machine solutions
- Stable filling performance
- Professional technical support
- Competitive factory price
- Complete after-sales service
We help global customers improve packaging efficiency and reduce production costs.
Conclusion
Tube filling machines play an important role in modern packaging production. From tube loading and filling to sealing and coding, the entire process is automated, accurate, and efficient.
Whether you are producing cosmetic cream, toothpaste, ointment, or food paste, an automatic tube filling sealing machine can help improve product quality and production capacity.
