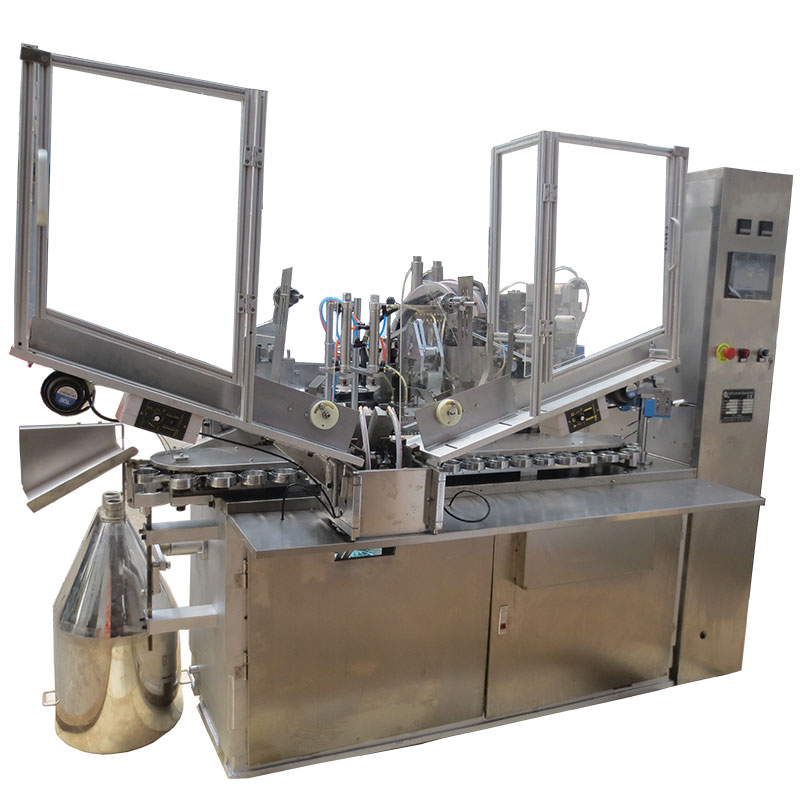

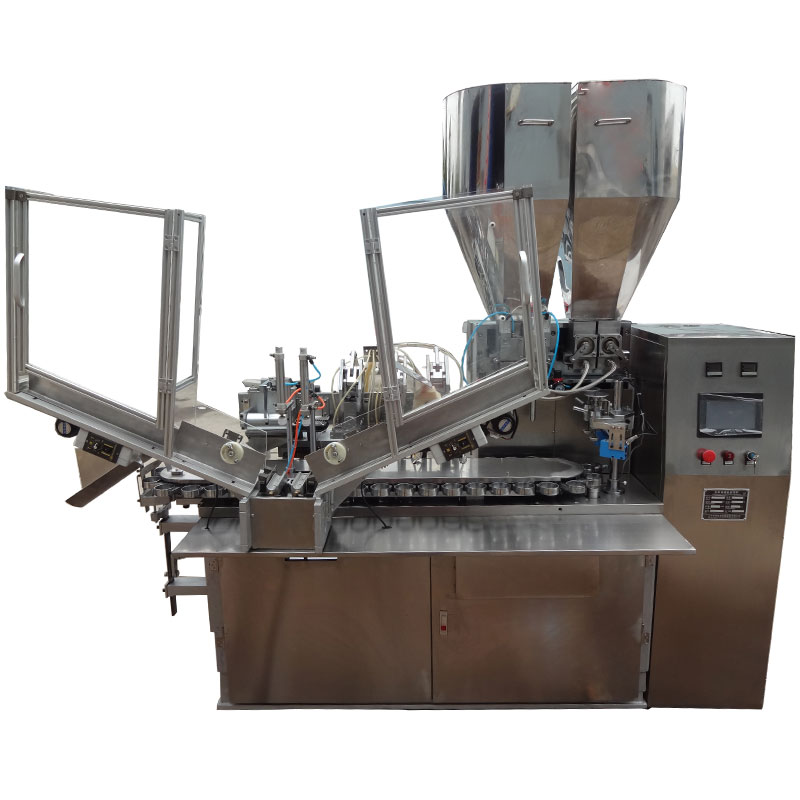

HTGF-100 Tube Filling Sealing Machine

Tube Filling Machine – HTGF-100 using rotary type, double filling heads, high speed. The filling type uses the piston way, and filling accuracy is precision. Filling nozzle anti-drop type, no leak after filling. Easy to adjust the filling volume, and change molds for a different size, and the filling speed can be adjusted. It applies to all kinds of composite tubes, plastic pipe or metal pipe filling and sealing, date printing, cut the tail.

1. Soft Tube, Plastic Pipe, Composite Pipe, Metal Tube
2. Ointment, Cream, Liquid, Gel Viscosity Fluids Agents.

Applicable Industries

It is widely used in pharmaceutical, cosmetic, food, chemical, and other industries packaging. Such as ointments, gels, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste, and other liquid or paste filling and sealing materials.

HTGF-100 automatic tube filler tube sealer using rotary type, double filling heads, high speed. The filling type uses the piston way, and filling accuracy is precision. Filling nozzle anti-drop type, no leak after filling. Easy to adjust the filling volume, and change molds for a different size, the filling speed can be adjusted. It applies to all kinds of composite tubes, plastic pipe or metal pipe filling and sealing, date printing, cut the tail. It adopts closed and semi-closed filling pastes and liquids. The sealing has no leakage, and the filling weight and volume are consistent. The filling, sealing, and printing can be completed at one time.

HTGF-100 is suitable for medicine, daily chemical, food, and Product packaging in chemical and other fields. Such as: filling and sealing of materials such as Piyanping, ointment, hair dye, toothpaste, shoe polish, adhesive, AB glue, epoxy glue, neoprene, and other materials. It is an ideal, practical, and economical filling equipment for the pharmaceutical, daily chemical, and fine chemical industries.

Working Process:

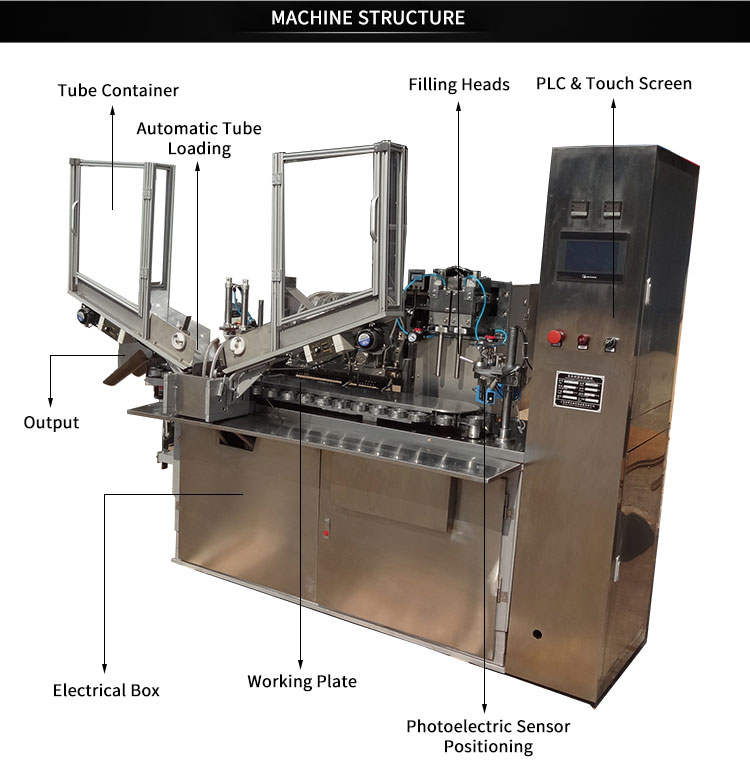

• Plastic Tube: Tube Container → Automatic Tube Loading → Photoelectric Sensor Positioning → Fluid Filling → Tube Hot Melting → Tube Sealing & Date/Batch Number Coding → Tube Checking and Rejecting →Trimming → Output
• Metal Tube: Tube Container → Automatic Tube Loading → Photoelectric Sensor Positioning → Fluid Filling → Folding Tube → Tube Checking and Rejecting → Output
