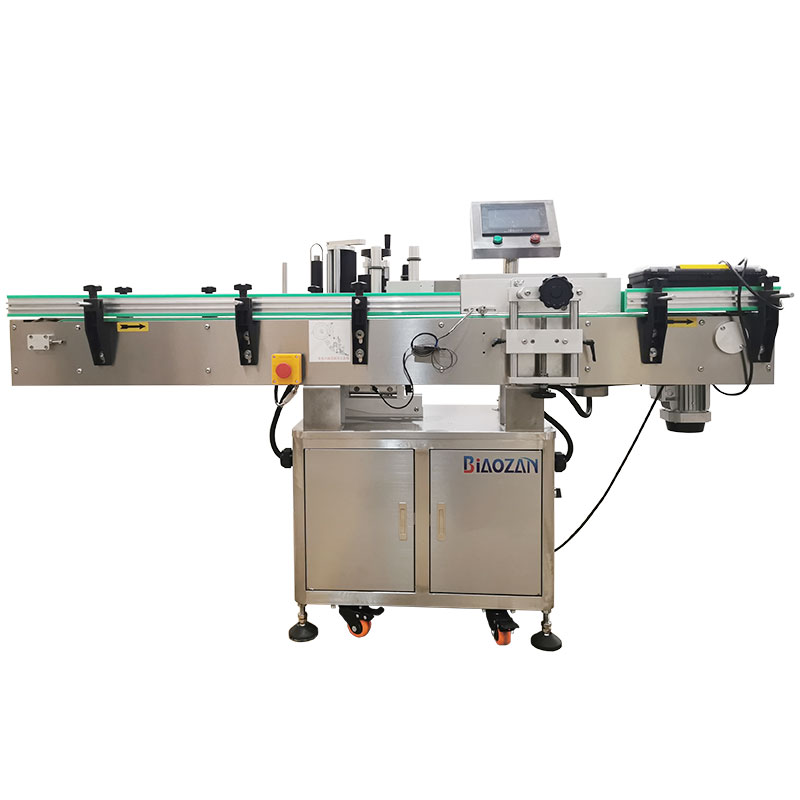

Bottle labeling machine is automated and easy to use, round bottle sticker labeling machine is the most appropriate equipment to label bottles and other items that are round shaped; and which are made using materials such as aluminum, glass, plastic, HDPE, LDPE, PET, PP, etc. Further, it has a robust body made from stainless steel and hence requires very little maintenance.

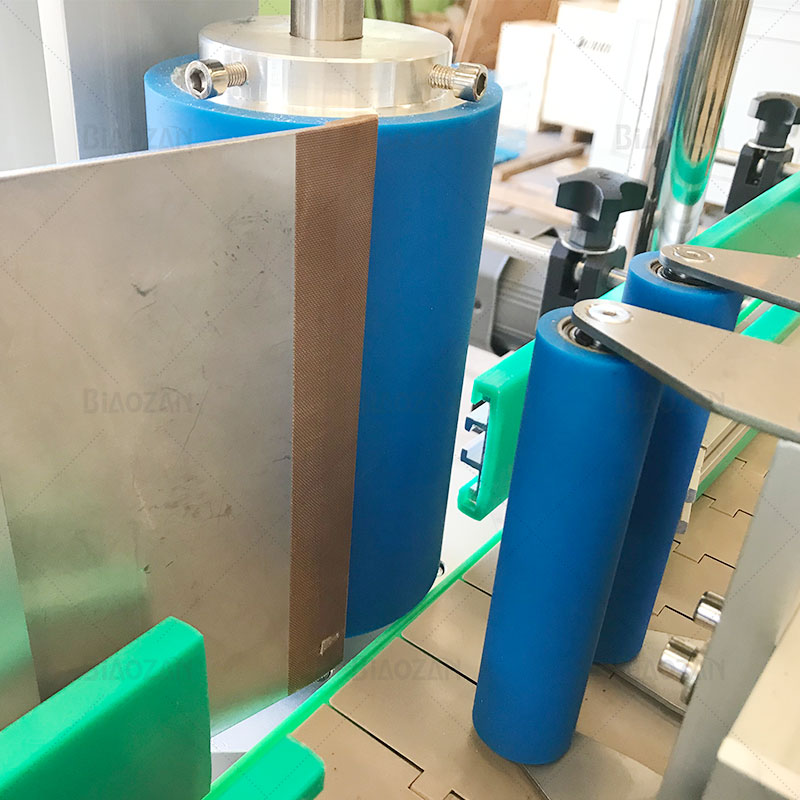

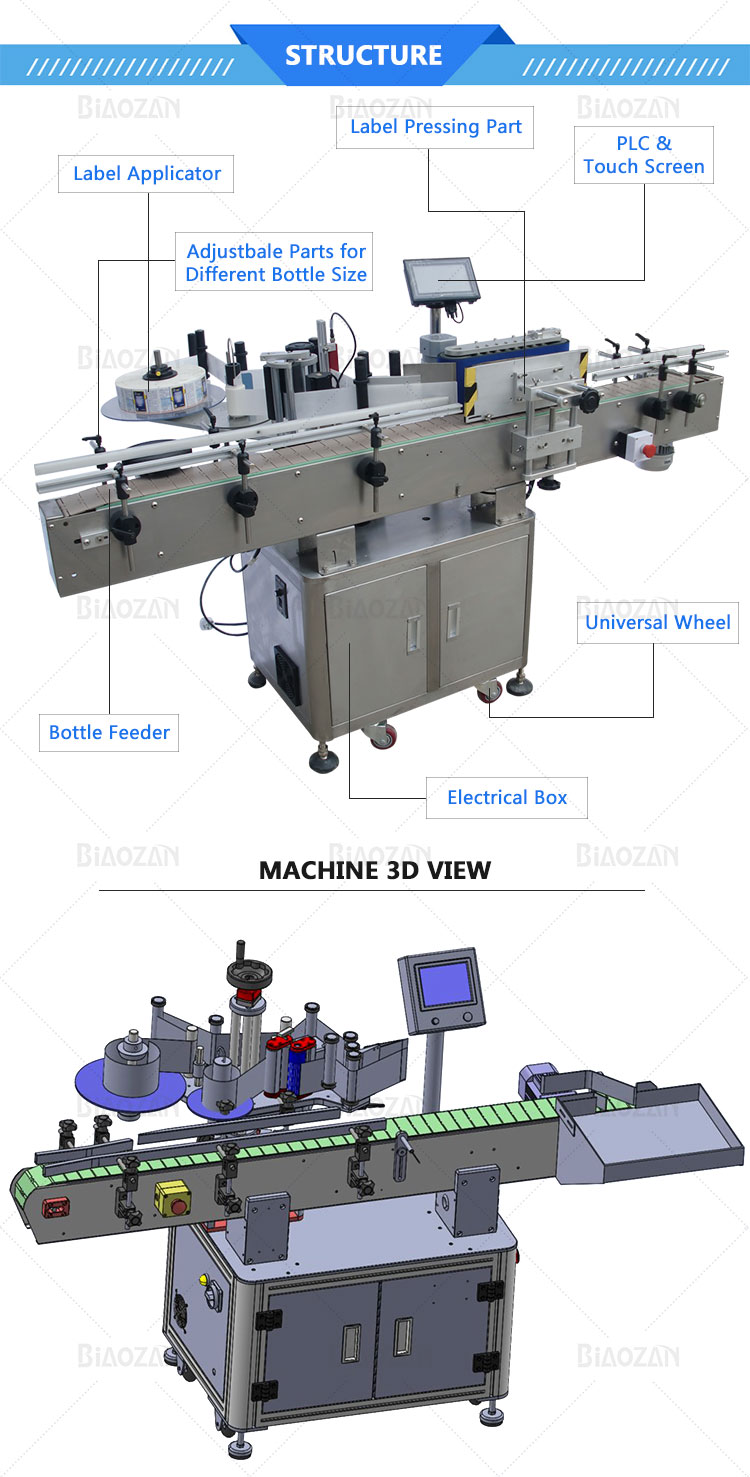

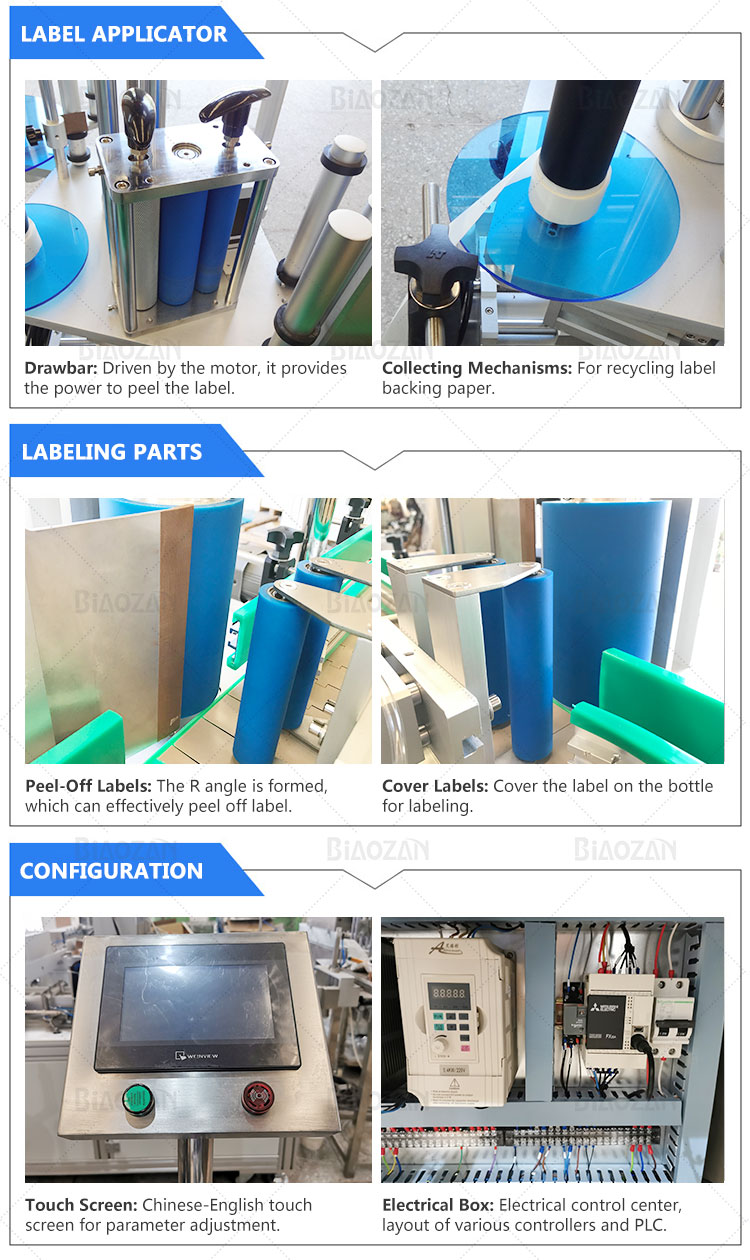

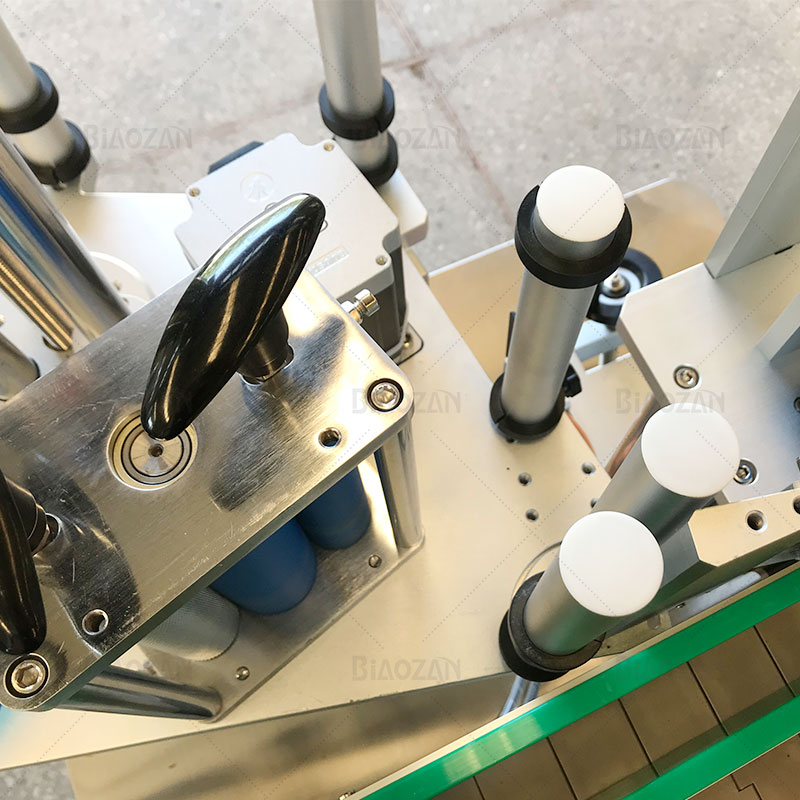

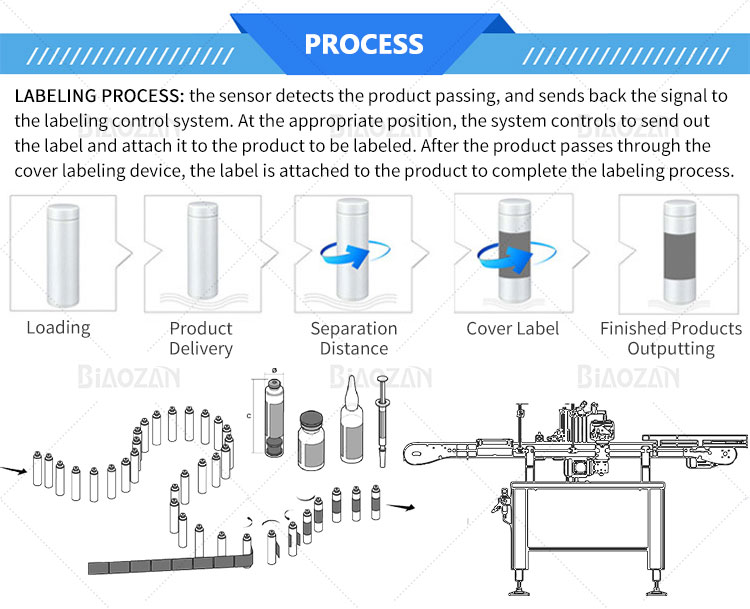

This type of automatic sticker labeling system consists of the main structure, product transmission belt with guide adjustment, label dispensing unit, label pressing system, motor, sensor, mains on/off, emergency switch, PLC.

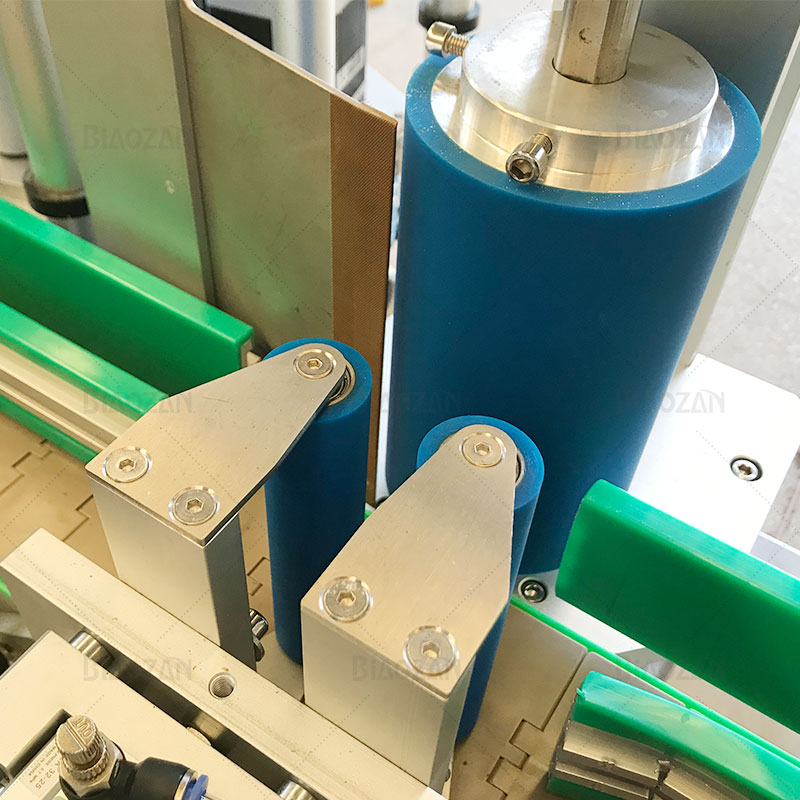

Bottle labeling machine has the capacity to label a maximum of 120 products in a minute, depending on the diameter of the product and the size of the label. It also includes an ultra-modern and positively driven, spacing roller; that helps to do away with the need of using the feed worm or star wheel for uniformly separating the products, and for regular-shaped containers. The vertically, as well as horizontally adjustable pressing device of this smart and sophisticated equipment, enables you to easily and conveniently align the height and the diameter of the containers.
Our labeler machines are widely used in Pharma Syrup, Dry Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Phenol, Fruit Juice, Ready to Drink Juice, Cosmetics, Talcum Powder, Bleach Powder, Herbal Powder, Ayurveda Powder, Wine, Liquor, Electrical Components, Dental Products, Adhesive, Glue, Rubber Adhesive, Stationery, LIP Balm, Petroleum Jelly, Hair Developer, Hair Straightener, Hand Wash, Dish Wash, Hand Sanitizer, Cosmetic Lotion, Hair Wash, etc.

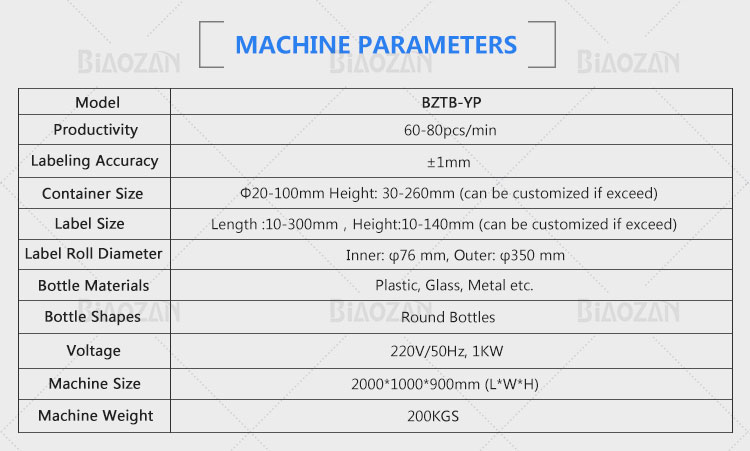

Specifications:
| Model | BZTB-YP |
| Labeling Speed | 60-80pcs/min |
| Labeling Accuracy | ±1mm |
| Container Size | Φ20-100mm Height: 30-260mm (Customized) |
| Label Size | Length :10-300mm, Height:10-140mm (Customized) |
| Label Roll Diameter | Inner: φ76 mm, Outer: φ350 mm |
| Bottle Materials | Plastic, Glass, Metal, etc. |
| Bottle Shapes | Round Bottles |
| Voltage | 220V/50Hz, 1KW |
| Machine Size | 2000*1000*900mm (L*W*H) |
| Machine Weight | 200KGS |
