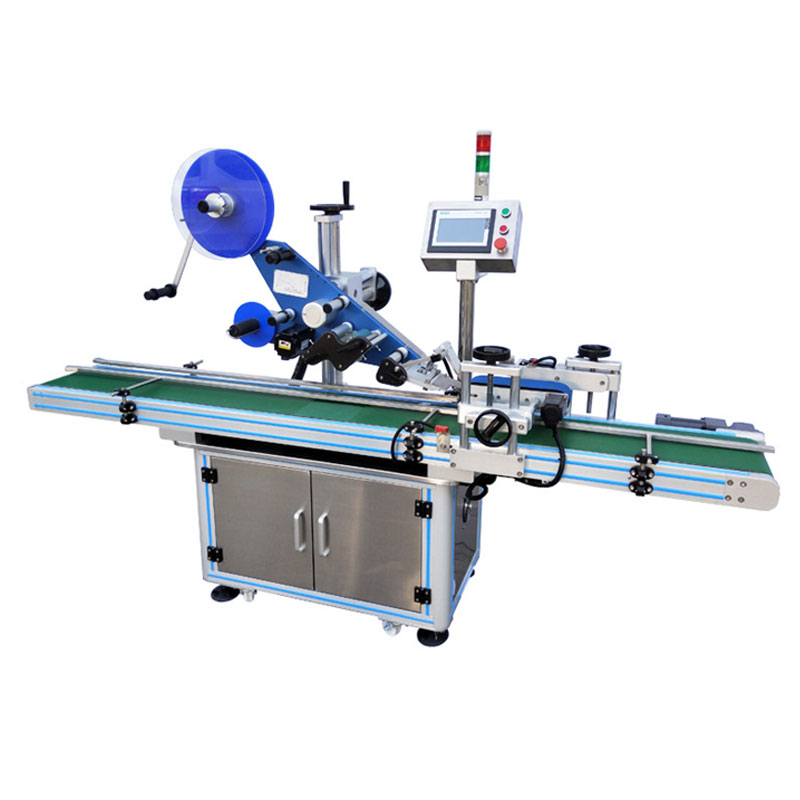

Corner labeling machine uses famous brand Electric Original imported original so that labeling more stable and the Company’s products enjoy popular support from all walks of life, performance stable and reliable, this machine-wide adoption of SUS304 stainless steel production, the quality of up to 100%. The use of stepper motor control, the import operation screen, paste error precision, high efficiency. With failure and numerical alarm device (optional) and a printer can output the frequency of the production-line Record. Achieve automatic monitoring production.
The automatic corner labeling machine can be combined with the flat labeling machine to form continuous labeling.
Corner labeling machine meets the industry needs for high-quality information identification of product packaging; it is effective to solve the security issues online in all sectors of the logistics supply chain. Labeling speed is 30 – 60 pieces per minute, labeling accuracy is ±2 mm.
Features
- Dedicated to the corner labeling of the box, to realize the corner labeling of the flat and side planes of the box, and play a role of anti-disassembly.
- High speed, the corner labeling speed of playing cards can reach 180 boxes/min, which greatly improves production efficiency.
- The label is firm and does not fall off. On the flat part of the label, the roller is rolled to cover the label firmly, and the side flat part is firmly pressed by the brush.
- High stability, set-top pressing mechanism, high stability of box conveying, good labeling, and labeling effect.
- Intelligent control, automatic photoelectric tracking, with no object and no labeling, no label automatic correction, and automatic label detection functions to prevent missing labels and label waste.
- High stability, advanced electronic control system composed of Panasonic PLC+Kunlun touch screen+Panasonic needle-shaped electric eye+German Leuze label electric eye, supporting 7×24 hours operation of the equipment.
Specifications:
Model | BZTB-ZJ |
Labeling Precision | ±1mm |
Labeling Speed | 50pcs/min |
Object Size | L: 10-300mm, W: 10-150mm, H:20-100mm |
Label Size | L:20mm-100mm, W:20mm-50mm |
Voltage | 220V, 50Hz |
Power | 1KW |
Alarm | No ribbon, broken marked, no label |
Machine Size | 2000*1450*1600mm (L*W*H) |
Machine Weight | 330KGS |
