The cartoning machine can finish automatic feeding, carton opening, object into cartons, batch printing, folding box, scrapping, etc. The structure is compact and reasonable, and the operation adjustment is simple.


  • Model: HTZH-80
  • Speed: 40-80 boxes/min
  • Carton Size: L: 50-180mm, W: 30-85mm, H: 15-50mm
  • Carton Quality: 250-350g/m2
  • Air Consumption: 0.5-0.8MPa, 5-20L/min
  • Power: 1.5KW

Working Process

  • Object automatic feeding
  • Carton loading and opening
  • Object into carton
  • Carton small tongue folding two sides
  • Caton folding two sides
  • Batch printing
  • Scrapping
Small Box Packing Machine

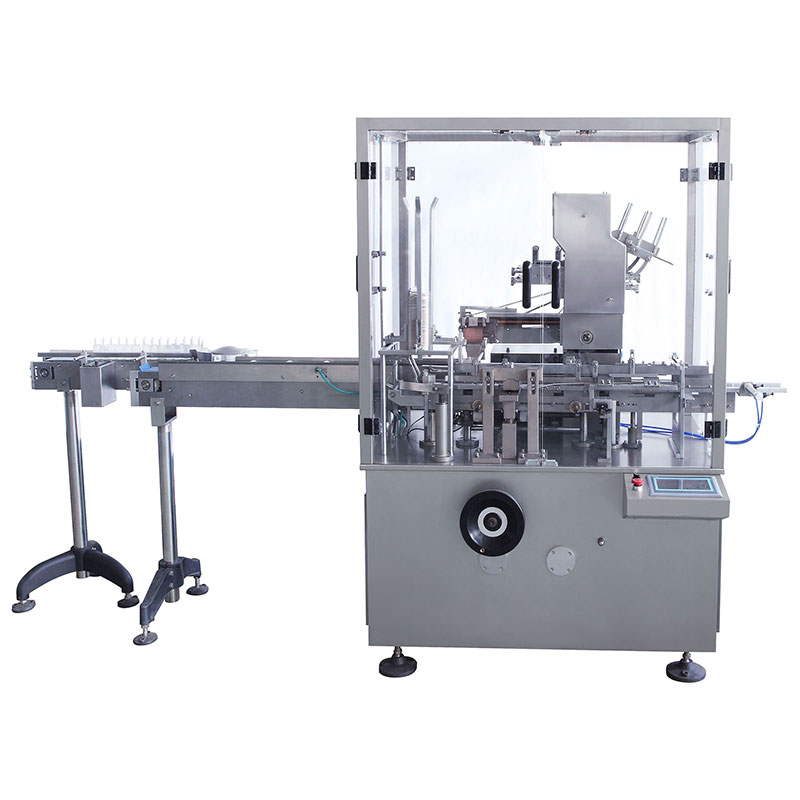

HTZH-80 Cartoning Machine
Small Box Packing Machine
HTZH-80 Cartoning Machine
This machine is widely used for packaging in many fields, pharmacies, food, daily chemical, etc. Such as blister packaging (tablets, capsules, etc.), ointments for paste, cream, colloidal products, vials, ampoules, and syringes. It is used for bottles, bags, etc. Various forms of bag packaging for food, various filling and box packaging, desserts, chocolates, candies, biscuits, bottled wines, frozen products, etc. Daily chemical products such as paste, cream, lotion, colloidal product hose or bag, bottle box, toothpaste, soap product box, light bulb, computer floppy disk, tape roll, photographic film, etc.
This machine is an automatic cartooning machine, a high-tech product of electromechanical integration. This machine is composed of a product conveyor belt, product suction-release mechanism, automatic instruction manual-folding and feeding, automatic batch coding mechanism, and carton packaging machine. The maximum operating speed can reach 80 boxes/min. Our company designs and installs according to the production equipment of various products. The object’s feeding mechanism can be customized according to your request. It can be assembled with a hot glue machine)
Main features: There is no object, no box, to avoid the phenomenon of empty boxes, automatic rejection without instructions, automatic printing on the tongue of the box, easy and quick to change specifications, especially suitable for products with many specifications.
