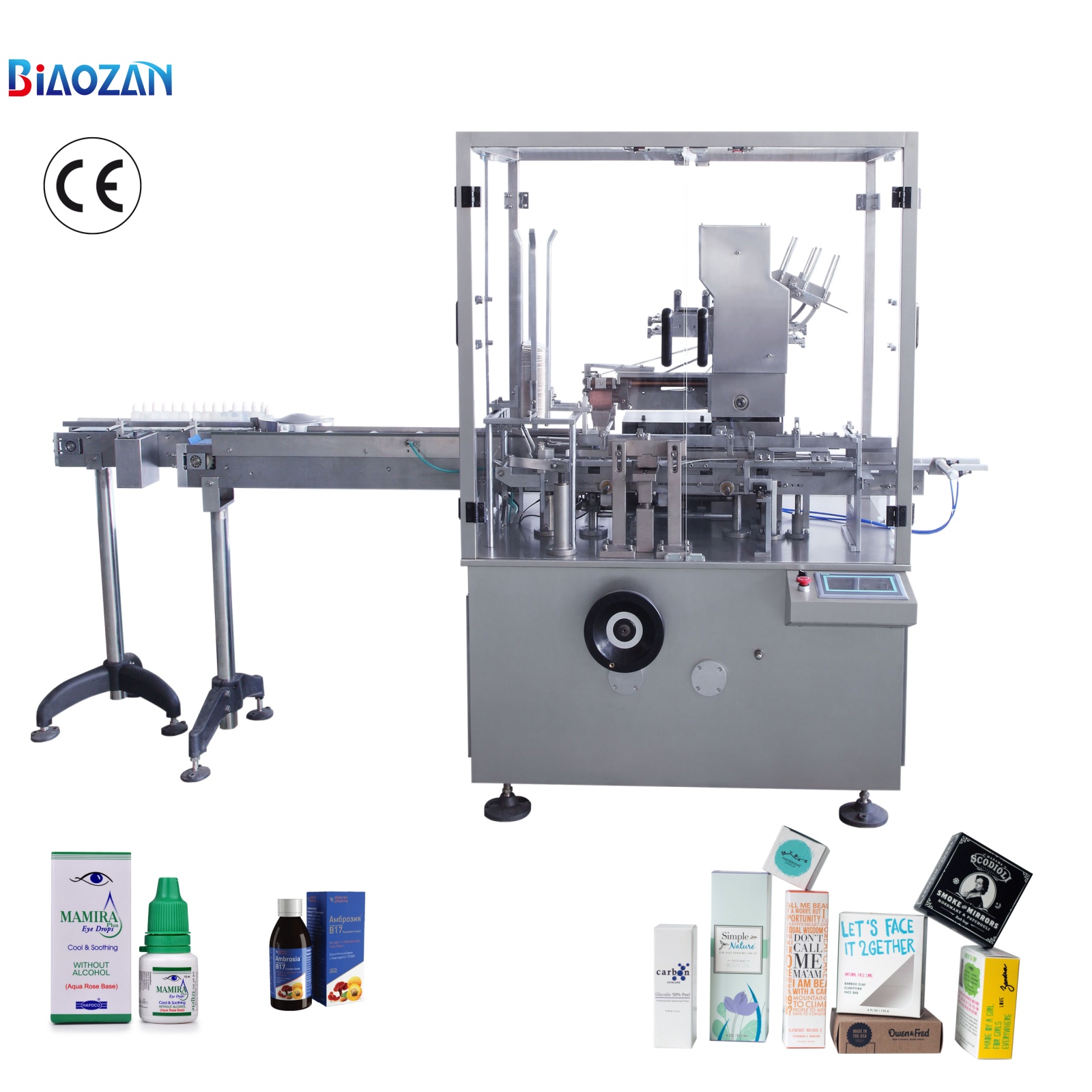

Automatic Bottle Cartoning Machine

Our bottle cartoning machine is designed for fully automatic cartoning of pharmaceutical bottles, health supplement bottles, and cosmetic containers. The machine performs bottle feeding, leaflet inserting, carton forming, coding, and sealing in a fully synchronized process.

It accommodates various bottle shapes such as round, square, or oval, and integrates seamlessly with filling, capping, and labeling lines. With advanced sensors and PLC control, it ensures high speed, precise bottle placement, and stable operation.

Whether you’re packaging syrup bottles, pill containers, vitamin jars, or dropper bottles, this automatic bottle cartoning machine delivers consistent performance with minimal human intervention, meeting GMP standards.

Description
INQUIRY

Automatic Bottle Cartoning Machine – High-Speed Solution for Pharmaceutical Packaging

Shanghai Biaozan’s automatic bottle cartoning machine is an advanced packaging solution designed for efficiently inserting bottles into pre-formed cartons. Whether you’re packaging plastic bottles, glass bottles, pill containers, dropper bottles, or syrup bottles, this machine ensures fast, precise, and hygienic cartoning that complies with GMP and FDA requirements.

🔧 Key Features of Our Bottle Cartoning Machine:

Wide Application: Suitable for round, square, oval bottles across the pharmaceutical, nutraceutical, and cosmetics industries.

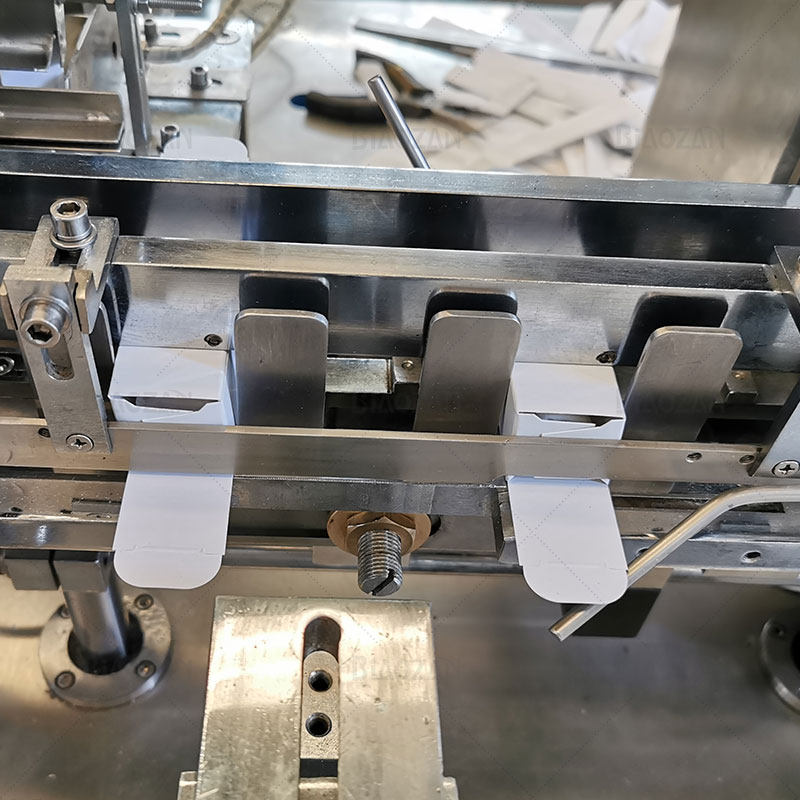

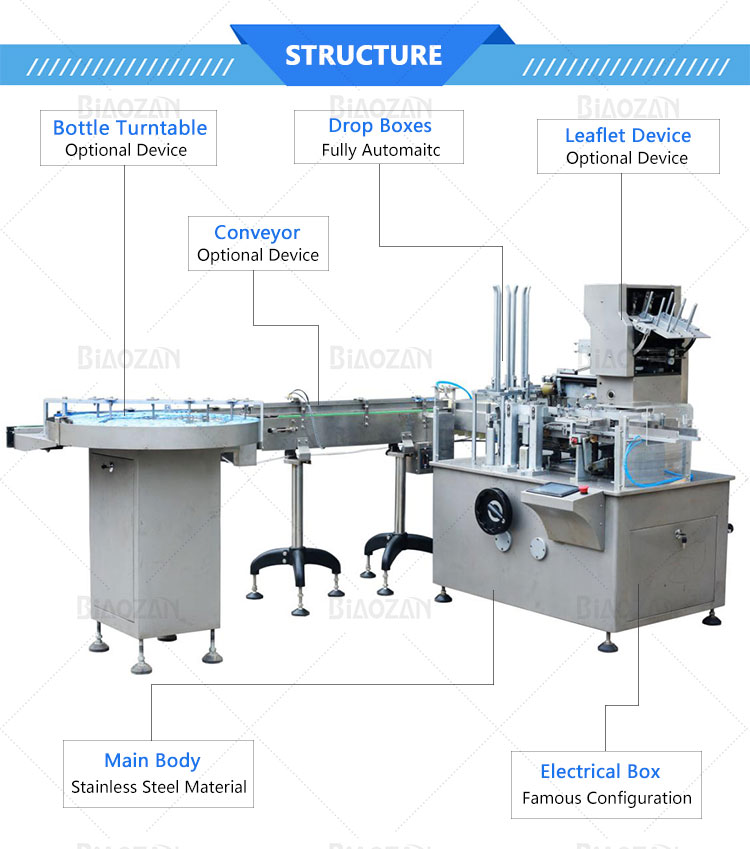

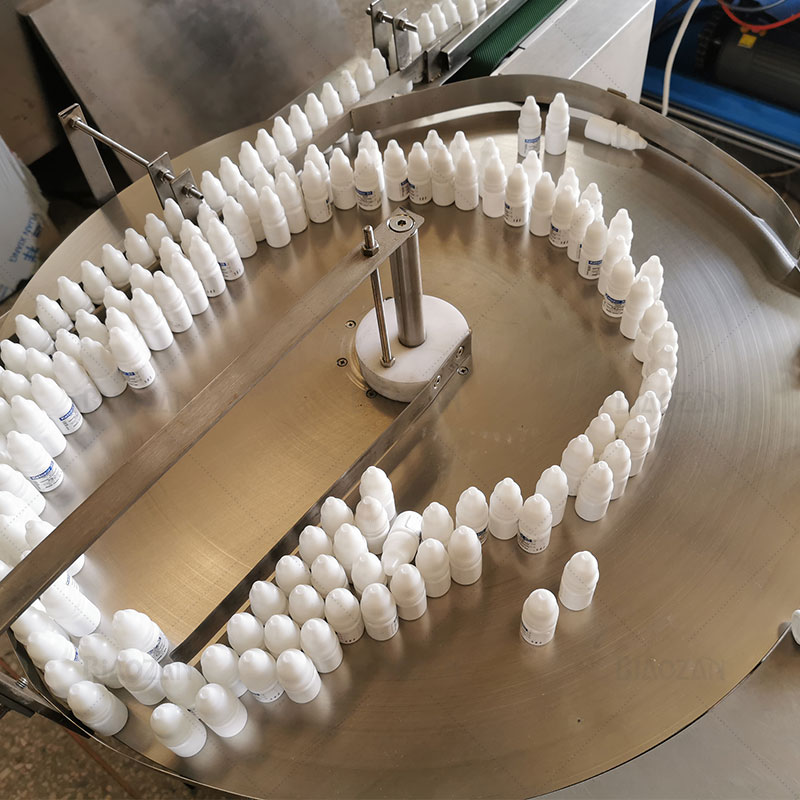

Fully Automatic Operation: Integrates bottle infeed, leaflet folding and insertion, carton forming, product loading, batch coding, and carton sealing in one continuous process.
High-Speed Cartoning: Capable of reaching speeds of 60–120 cartons/min, depending on bottle and carton size.

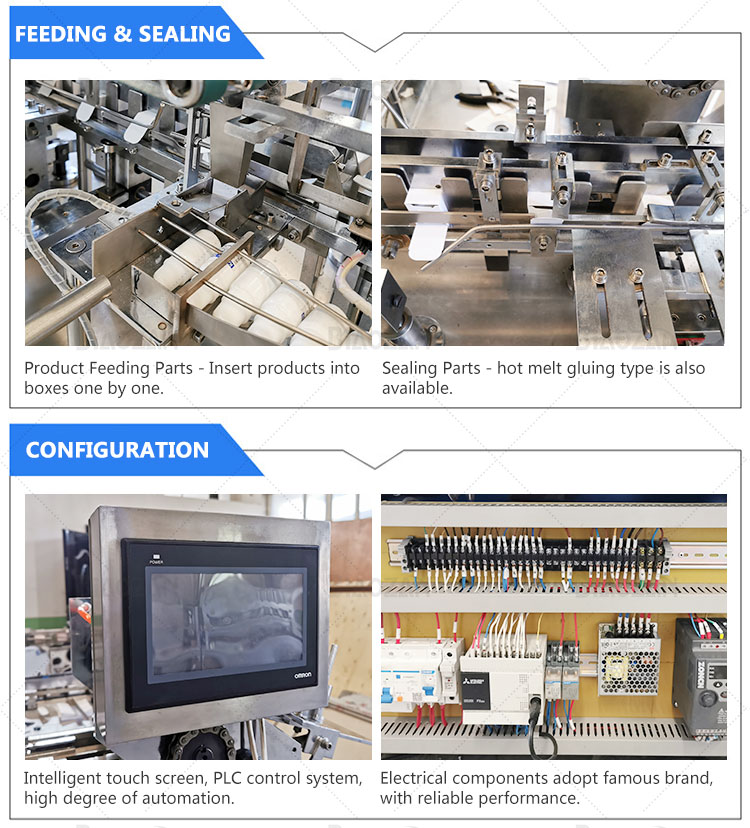

Smart Control System: Equipped with PLC and HMI touchscreen, offering intuitive operation, fault alarms, and real-time production data.
Compact Footprint: Designed to save floor space and integrate seamlessly into existing production lines.

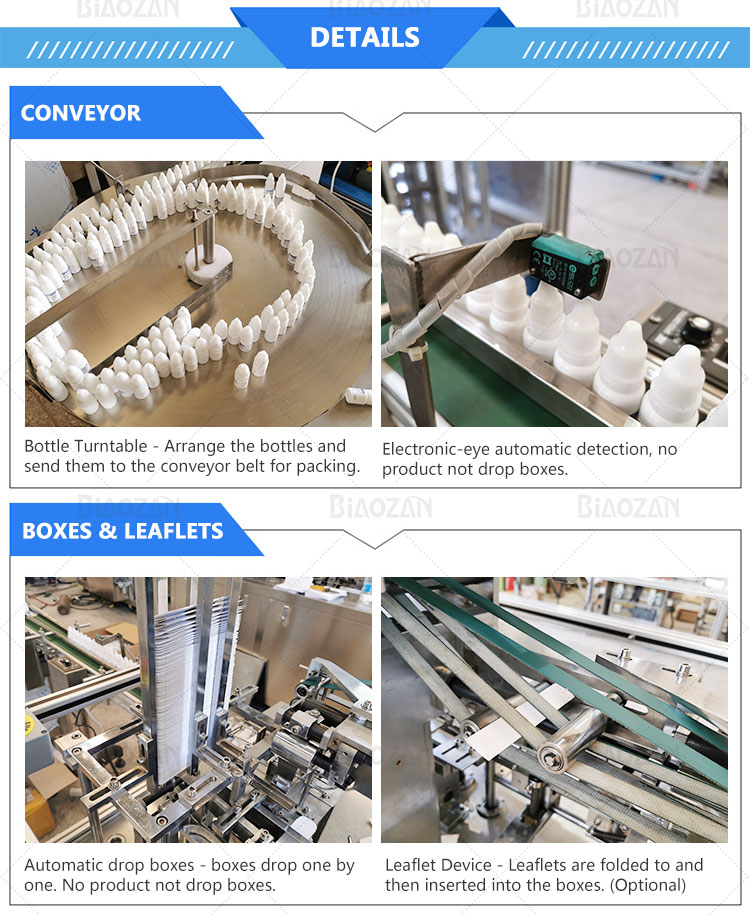

Stable Performance: With bottle detection, leaflet detection, and carton presence verification, it ensures reliable output and low error rates.

📦 Typical Products for Cartoning:

Oral liquid bottles
Cough syrup bottles
Vitamin and supplement containers
Essential oil dropper bottles
Eye drop bottles
Capsule or tablet bottles

📊 Technical Specifications:

Specification	Data
Speed	60–120 cartons/min
Carton Size Range	L(50–200) × W(20–90) × H(15–80) mm
Power Supply	AC 220V / 380V, 50Hz
Air Pressure	0.6–0.8 MPa
Power Consumption	2.5–4.5 kW
Machine Dimensions	Customized to model
Control System	Siemens PLC + Touchscreen HMI
Material Compatibility	Glass bottles, plastic bottles

✅ Why Choose Shanghai Biaozan?

Over 15 years of experience in automated packaging machinery.
Custom solutions available to suit your specific bottle type, carton design, and production speed.
Strong R&D and engineering team to support installation and technical service.
Exported to over 50 countries with long-term satisfied customers.
