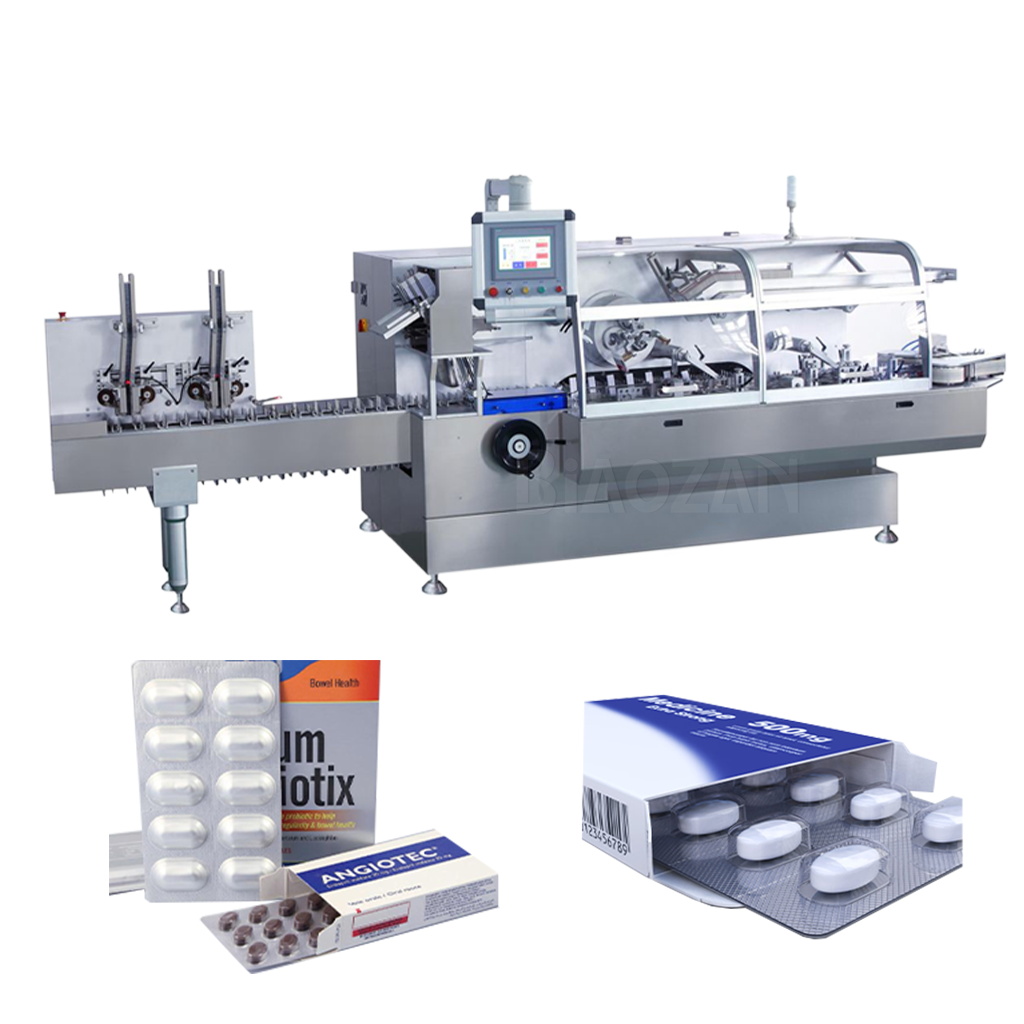

✅ Key Features of the Blister Cartoning Machine
-
High Speed & Accuracy
Capable of processing 60-200 cartons per minute, our machine offers high-speed operation suitable for medium to large-scale production lines. -
Versatile Compatibility
Supports a wide variety of blister types including PVC/Aluminum (ALU), ALU/ALU, and thermoformed or cold-formed materials. It can also handle multiple blister cards per carton as needed. -
Multi-functional Integration

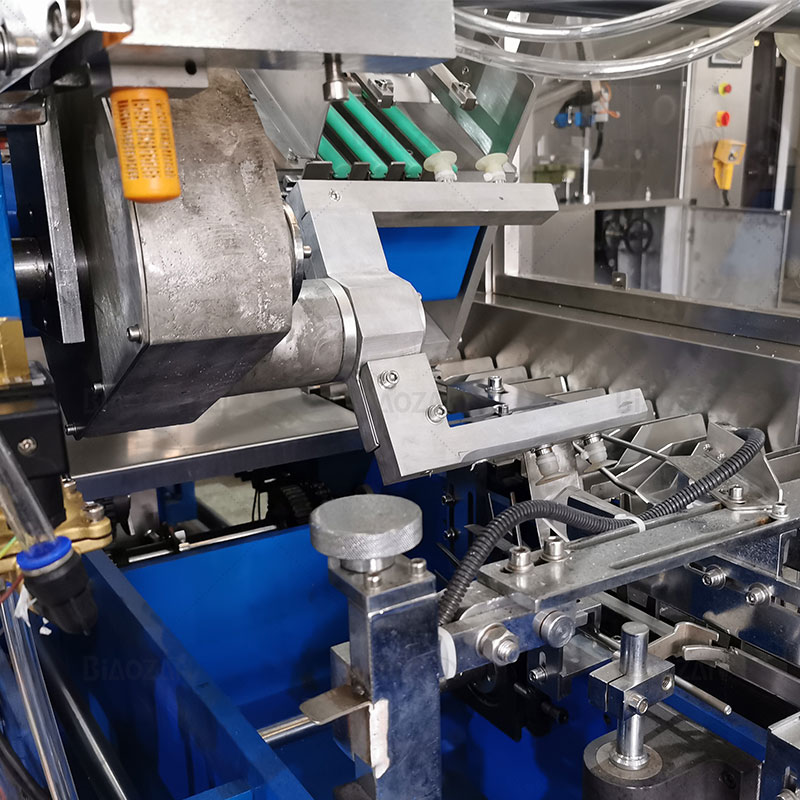

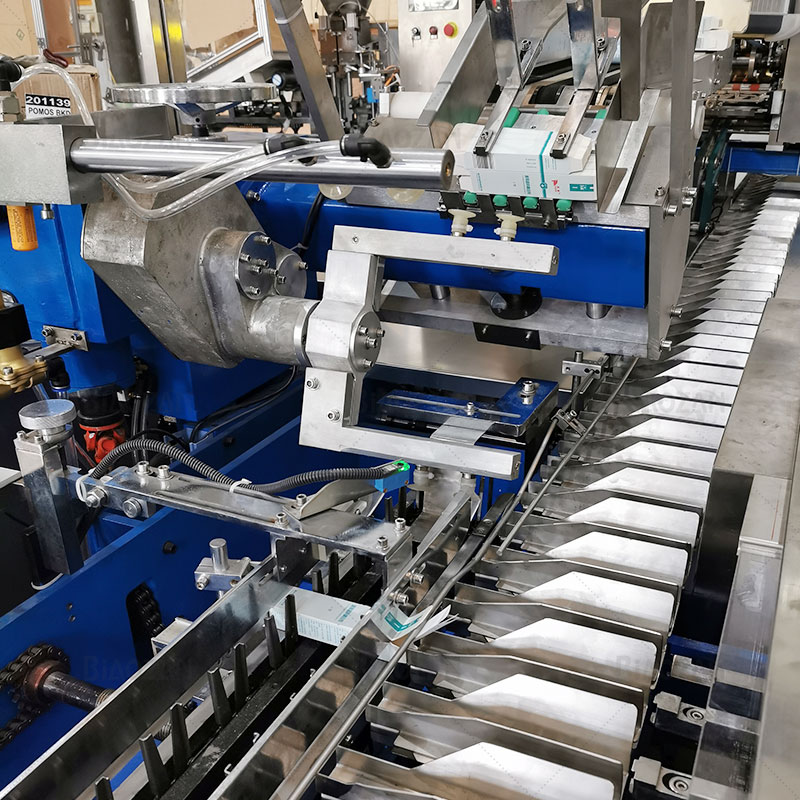

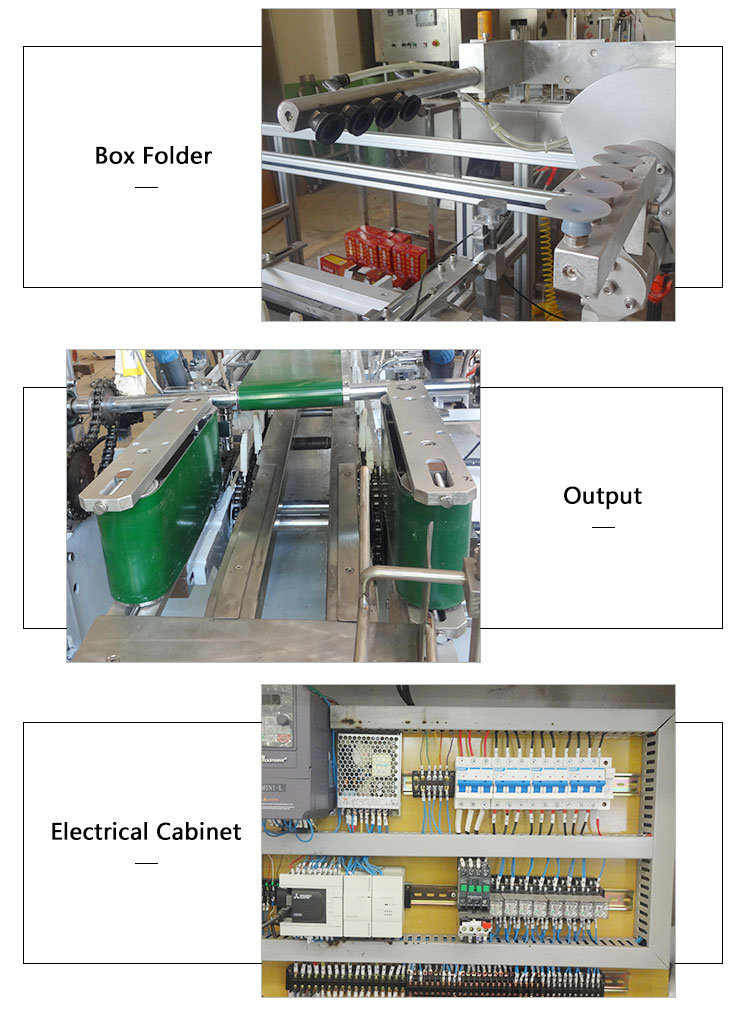

Performs blister feeding, leaflet folding and inserting, carton opening, product loading, batch number coding, and carton closing (tuck-in or hot melt glue)—all in one streamlined process. -

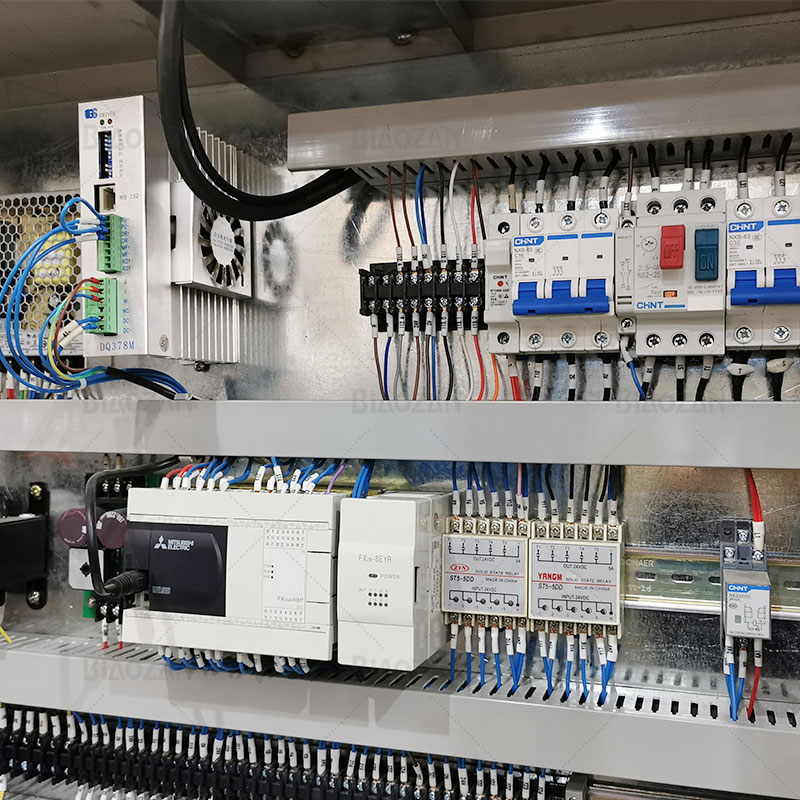

Touchscreen Interface & PLC Control
User-friendly operation via HMI (Human-Machine Interface) with PLC control system ensures precise adjustments, real-time monitoring, and minimal training requirements. -
GMP-Compliant & Stainless Steel Construction
Designed with pharmaceutical-grade stainless steel to meet GMP and CE standards, ensuring cleanliness, hygiene, and durability in demanding environments. -
Smart Detection Systems
Automatic detection for missing products, missing leaflets, and open carton rejection to ensure zero-defect output and consistent product integrity.
📦 Applications
Our automatic blister cartoning machine is widely used in:
-

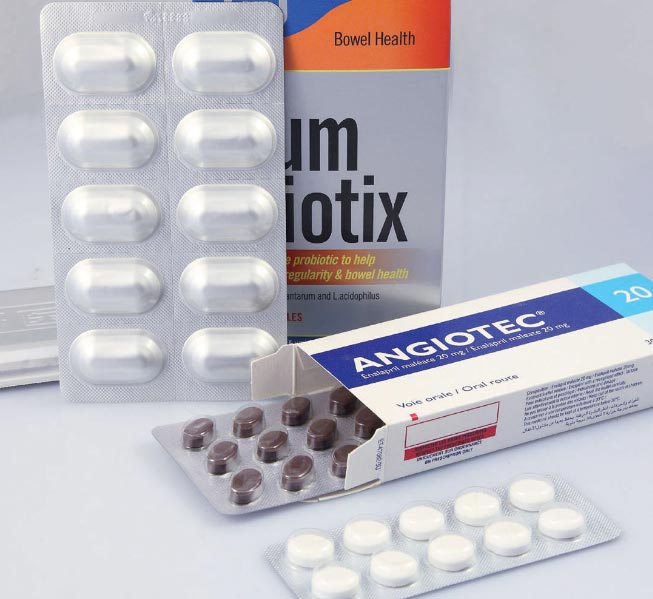

Pharmaceutical industry: Tablet and capsule blister cards
-
Nutritional supplements: Softgel or vitamin blisters
-
Medical devices: Diagnostic test kits or patch kits
-
Cosmetics: Sample blister packs (e.g. skincare sachets)
-
Veterinary products: Pet medication in blister form
📊 Technical Specifications (Example Model)
| Specification | Details |
|---|---|
| Production Capacity | 60-200 cartons/min |
| Carton Size Range | L 65–200 mm × W 35–85 mm × H 15–70 mm |
| Power Supply | 220V/380V, 50/60Hz |
| Power Consumption | 5–7 kW |
| Compressed Air | 0.5–0.7 MPa, 0.3 m³/min |
| Machine Dimensions | Approx. 4200 × 1500 × 1700 mm |
| Weight | Around 1500–2000 kg |
Customizable sizes and features are available upon request.
💡 Why Choose Shanghai Biaozan?
-
✔ Rich Industry Experience: Trusted by global pharmaceutical brands for over a decade
-
✔ Customization Available: Tailor-made solutions for different blister types and output needs
-
✔ After-Sales Support: On-site installation, training, and prompt technical assistance
-
✔ CE & GMP Compliance: Meets international pharmaceutical packaging standards
-

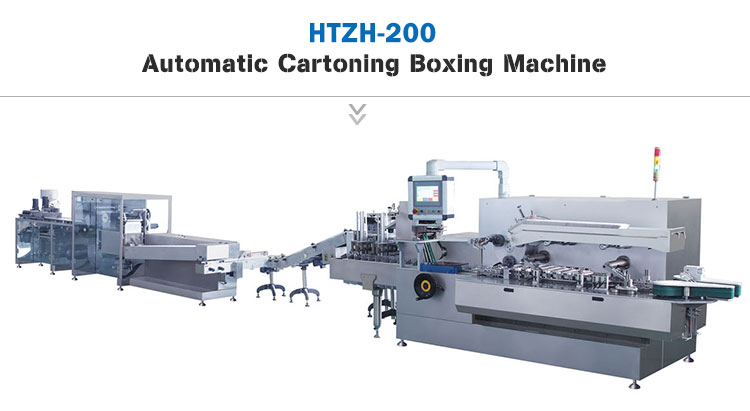

✔ Complete Packaging Line: Optional integration with blister forming machines, leaflet folders, and case packers
📬 Get a Quote Today
Looking to upgrade your packaging line with an efficient blister cartoning machine? Let Shanghai Biaozan help you build a customized, cost-effective solution.
👉 Contact us now to discuss your project or request a free quote. Our team is ready to provide one-on-one assistance tailored to your needs.
